Alloy 20 round bars Exporter & Stockist
- UNS S08020
- WR. NO 2.4660
- FeMi35Cr20Cu4Mo2

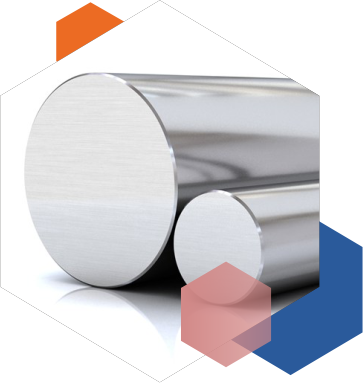

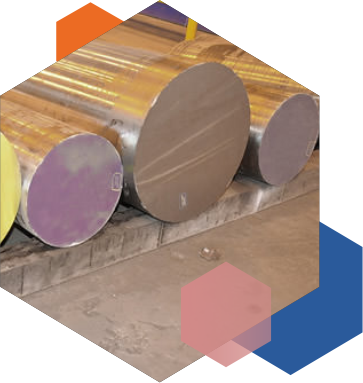

Alloy 20 round bars UNS S08020 EN 2.4660 contain Chromium 19.00-21.00%, Manganese 2.00% max, Nickel 32.00-38.00%, Silicon 1.00% max, Carbon 0.07% max, Niobium 8 XC-1.00% maximum which is commonly used in various daily applications such as Chemical and allied industries, Food and dye production, Heat exchangers, Explosives, Tanks, Valves, Pickling racks, Manufacture of synthetic rubber and plastics, Pharmaceuticals, SO2 scrubbers and other severe environments. Alloy 20 in the annealed condition can be strengthened further by relatively low temperature heat treatment. Alloy 20 bars are available in ASTM A276, ASTM A479, ASTM A484, ASTM A582, ASTM A473 specifications. We Export and Stock Alloy 20 round bars along in types of Alloy 20 bright round bars, Alloy 20 hexagonal bars, Alloy 20 square bars, Alloy 20 hex bars, Alloy 20 flat bars, Alloy 20 threaded bars and Alloy 20 forged bars. All the Alloy 20 bars are available in hot rolled, peeled, annealed cold conditions. Being an ISO 6001-208 we export Alloy 20 rounds, hex, square & forged bars with Mill Test certificates or Third party test certificates.
Sizes we stock in Alloy 20 round bars:
- Thickness of Alloy 20 bars- 3mm up to 600mm
- Length of Alloy 20 bars– 2mm to 6000mm
- Tolerance of Alloy 20 bars - h8, h9, h10, h11, k12, DIN 1013, A484, GRIT 240 & 320
Chemical Composition for Alloy 20 Round bars
| Chemical Element | % Present |
| Carbon (C) | 0.07 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Nickel (Ni) | 32.00 - 38.00 |
| Phosphorous (P) | 0.045 max |
| Molybdenum (MO) | 2.00 - 3.00 |
| Sulfur (S) | 0.035 max |
| Chromium (Cr) | 19.00 - 21.00 |
| Niobium (Nb) Columbium (Cb) | 8 XC - 1.00 |
| Copper (Cu) | 3.00 - 4.00 |
| Iron (Fe) | Balance |
Mechanical Composition for Alloy 20 Round bars
| Grade | Alloy 20 | |
| Tensile Strength, ksi (min) | 80 | |
| Yield Strength, 0.2% offset ksi (min) | 35 | |
| Elongation % (min) | 30 | |
| Reduction of Area % (min) | 50 | |
| Hardness Brinell (max) | - | |
| Hardness Rockwell B (max) | - | |
Types of Alloy 20 bars we stock:
- Alloy 20 cold drawn & polished round, hex, square, threaded, forged bars
- Alloy 20 cold drawn, centre less ground and polished round, hex, square, threaded, forged bars
- Alloy 20 peeled and turned round, hex, square, threaded, forged bars
- Alloy 20 buffed round, hex, square, threaded, forged bars
- Alloy 20 chamfered round, hex, square, threaded, forged bars
- Alloy 20 solution annealed round, hex, square, threaded, forged bars
- Alloy 20 forged round, hex, square, threaded forged bars with annealed and aged condition
Chemical and allied industries, Food and dye production, Heat exchangers, Explosives, Tanks, Valves, Pickling racks, Manufacture of synthetic rubber and plastics, Pharmaceuticals, SO2 scrubbers and other severe environments.
